Szczegóły produktu
Place of Origin: China
Nazwa handlowa: Homsh
Orzecznictwo: ISO9001
Model Number: HS-PVT338
Warunki płatności i wysyłki
Minimum Order Quantity: 50
Cena: Negotaible
Payment Terms: T/T
Installation Method: Wall-mounted
Application Scenarios: Suitable for office areas, passageway turnstiles, hotels, office buildings, schools, hospitals, shopping malls, industrial parks, communities, and other venues that require palm vein access control and payment systems.
Product Features:
1. Equipped with third-generation palm vein recognition algorithm, featuring live detection for secure and reliable performance.
2. Ultra-fast recognition, recognition speed <0.3 seconds (5000 ID, upgradable to 10000 ID).
3. High accuracy: False Acceptance Rate (FAR) less than 0.001%.
4. Supports 360° palm rotation for a superior experience
5. Supports WiFi and Bluetooth .
6. Android system, supports secondary development.
7. 8-inch LCD touch screen for more convenient operation.
8. Supports serial port (RS485), Wiegand 26, 34 outputs, with strong expandability.
9. Supports secondary development, provides API and SDK, adaptable to more scenarios.

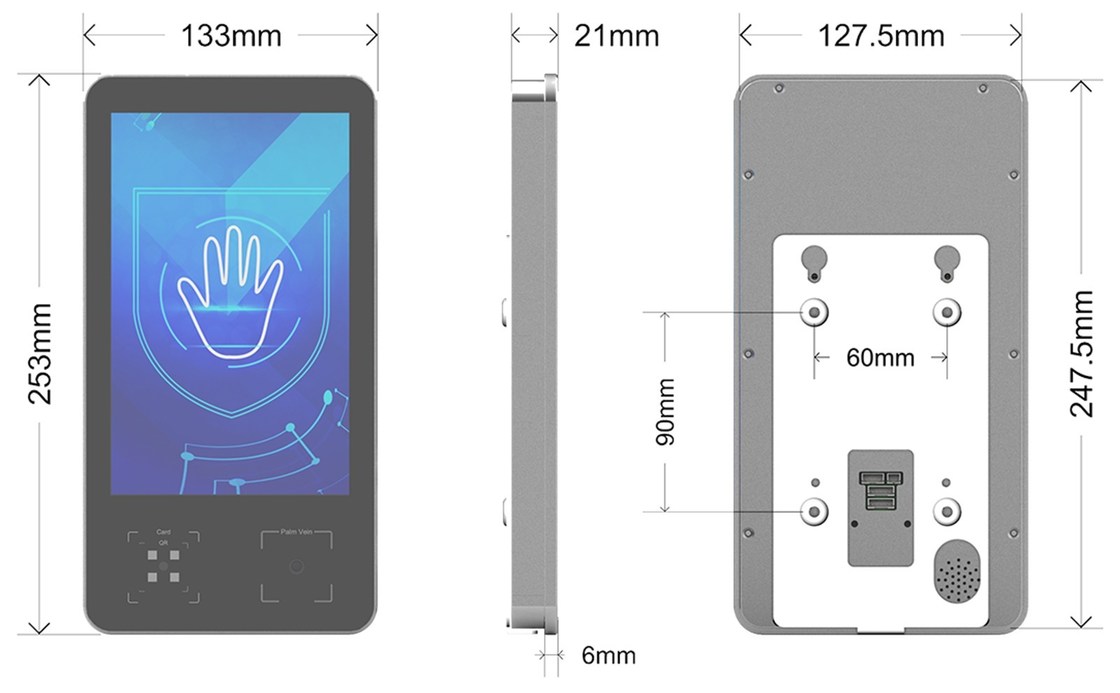

10. Compact size: 253*133*21mm (length*width*thickness), easy for installation.
Product Specification Table:
|
Item |
Sub-item |
Parameter |
|
Palm Vein Recognition Module |
Recognition Speed |
1:N mode:<0.3S (N=5000 ID) 1:1 mode:<0.2S |
|
Recognition Rate |
Rejection Rate (FRR)<0.01% False Acceptance Rate (FAR)<0.001% Note: This data is from laboratory testing, and actual data may vary depending on environmental factors of the usage scenario. |
|
|
Recognition Distance |
Non-contact Effective recognition distance 120mm-250mm Note: Based on standard palm size measurement, different environments and palm sizes may result in differences in effective recognition distance. |
|
|
Recognition Angle |
Horizontal Rotation Angle: 360° Horizontal Tilt Angle: ±20° |
|
|
User ID Number |
Recommended not to exceed 5000 ID ,Upgradable to 10000 ID(single hand mode) |
|
|
QR Code |
Read Speed |
3 reads/second |
|
Supported Codes |
2D: QR Code 1D: Code128/Code 39/Code 32/EAN/UPC |
|
|
Read Depth |
QR Code: 5cm-38cm (50mil paper code) |
|
|
NFC |
Protocol Standard |
ISO14443A, ISO14443B |
|
Frequency |
13.56MHz |
|
|
Supported Cards |
Mifare1, S50, S70, or compatible cards (Desfire) |
|
|
Read Speed |
≤50ms |
|
|
Screen |
Size |
8 inch |
|
Resolution |
1280*800, brightness 400cd |
|
|
Processor |
CPU |
Quad-core ARM Cortex-A53 up to 2.0G |
|
Memory |
DDR3 |
2GB |
|
Storage |
Flash |
8GB |
|
OS |
Android |
Android 13 |
|
Network |
Network Module |
100M Ethernet interface |
|
WiFi/Bluetooth |
Supports Wi-Fi 802.11b/g/n protocol (can also support WiFi6 or 5G WiFi). |
|
|
Interface |
Wiegand Interface |
1 Wiegand output, supports Wiegand 26/34 protocols |
|
Relay Interface |
1 relay interface |
|
|
Serial Port |
1 RS485 |
|
|
General Parameters
|
Usage Scenarios |
For indoor use (avoid direct sunlight) |
|
Power Supply |
DC12V |
|
|
Operating Temperature |
-10℃-60℃ |
|
|
Operating Humidity |
10%-90% |
|
|
Device Dimensions |
253*133*21mm(Length*width*thickness) |
